Dynamic Mold Heating (DMH)

Dynamic Mold Temperature Control (Variotherm) - Powered by Heat

Product information

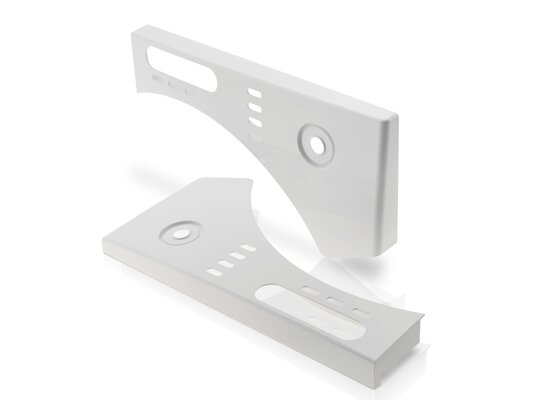

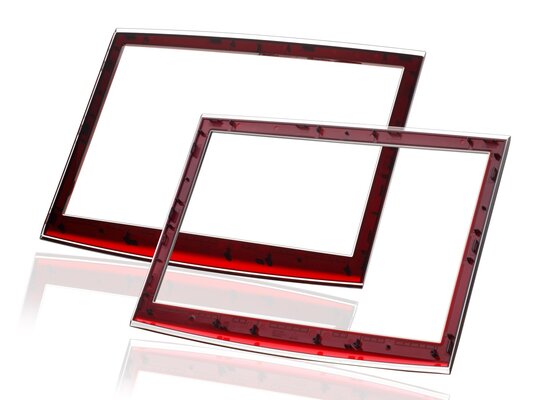

DMH (Dynamic Mold Heating) is a variothermal temperature-control process. The mold wall is intensely heated before injection and rapidly cooled again after filling. Depending on the requirement, one or both mold halves can be temperature-controlled. This process enables the production of parts with high-quality surfaces and improved properties in a single-shot process.

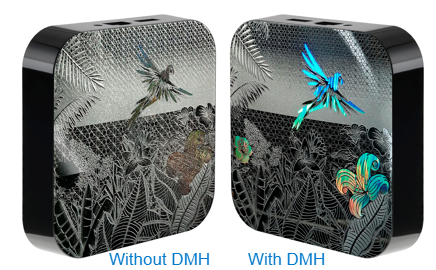

Elimination of typical injection molding defects
Creation of new, sophisticated surface designs
Savings in material during cycle time

Customized heating processes

A wide variety of heating processes are used in the DMH process, with the cooling phase usually being achieved using water.

Inductive systems

Fast heating time
Up to 400°C
3D contours and multiple cavities possible
Single-sided or double-sided cavity heating
Small to medium component size
Partner: Roctool with HDplastics

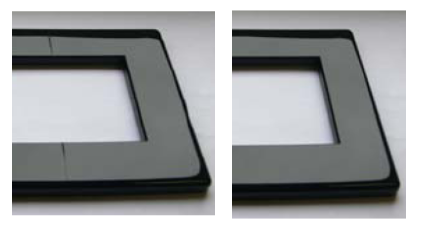

Electric heating systems

Fast heating time
2D contour
Local area
One-sided cavity heating
Small component size
Various manufacturers

Water / Water Solution

Slow to moderate heating speed
Temperature range up to 120°C
3D contour
Single-sided cavity heating
Small to medium component size
Various manufacturers

Steam / Water

Average heating time
Up to 180°C
3D contours
Single-sided cavity heating
Medium to large component size
Various manufacturers

Any questions? Our experts will be happy to advise you.

Contact

Extensions

Combination options Dynamic Mold Heating (DMH)

GX series (4,000 - 14,500 kN)

Benefit from the first-class hydromechanical dual platen concept of the GX Series in conjunction with the single-piston injection system. Thanks to the modular design, the compact dual platen clamping unit can be individually configured with all available injection units.

MX series (13,000 - 60,000 kN)

KraussMaffei is the market leader in large-scale injection molding machines. Our MX Series is recognized around the world and is principally characterized by the hydro-mechanical dual platen clamping unit, which we developed ourselves. The performance spectrum ranges from compact injection molding units with basic automation and highly complex production cells, through to complete factory planning

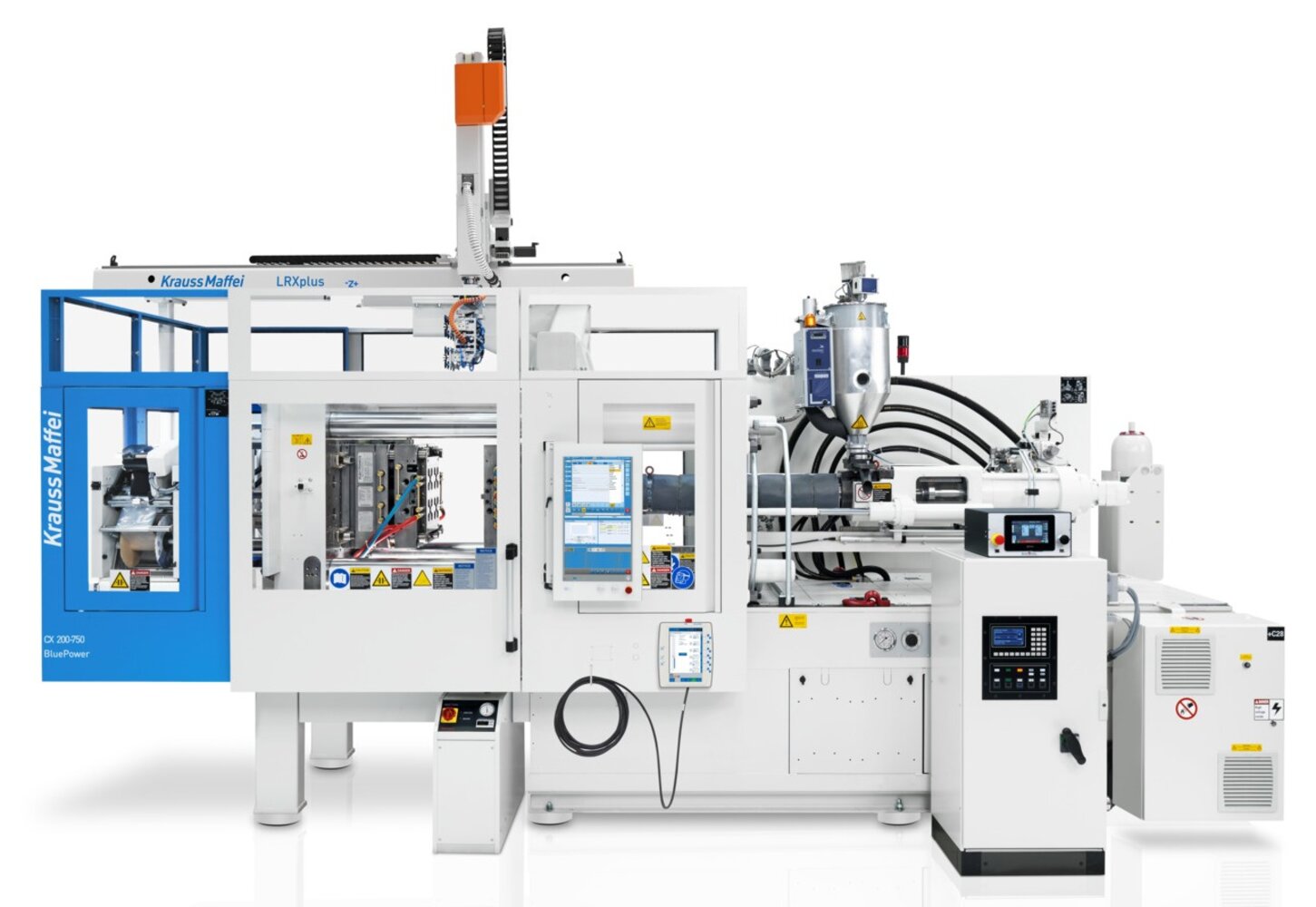

CX series (500 - 4,200 kN)

Each machine can be upgraded individually: In the fully hydraulic CX series, KraussMaffei offers outstanding compact, efficient and flexible technology and provides the basis for expansion with all available injection molding processes.

powerMolding (6,500 – 16,000 kN)

The powerMolding complements the injection molding portfolio with a series offering a standardized range of options for the economical production of simple plastic components. The hydromechanical two-platen injection molding machine powerMolding stands for a high level of quality combined with ease of operation and rapid availability.
Simple integration of automation solutions and KraussMaffei's global service network enable us to offer you the best possible support to further increase your efficiency and competitiveness.

precisionMolding (500 - 3,200 kN)

The precisionMolding complements the injection molding portfolio with a series offering a standardized range of options for the economical production of simple plastic components.

With the basic injection molding machine, precisionMolding, KraussMaffei created the perfect entry-level solution for all-electric injection molding to react quickly and innovatively to market demands. It combines high performance, easy operation and short delivery times. It can be widely used in different fields of applications, e.g. packaging, electric & electronics, medical and automotive.

PX series (500 - 4,000 kN)

The PX series is the answer to your requests for more flexibility while increasing productivity. You can assemble your PX precisely to your production requirements from a wide selection of components based on a modular design.
